Z1 series AGV finished product introduction

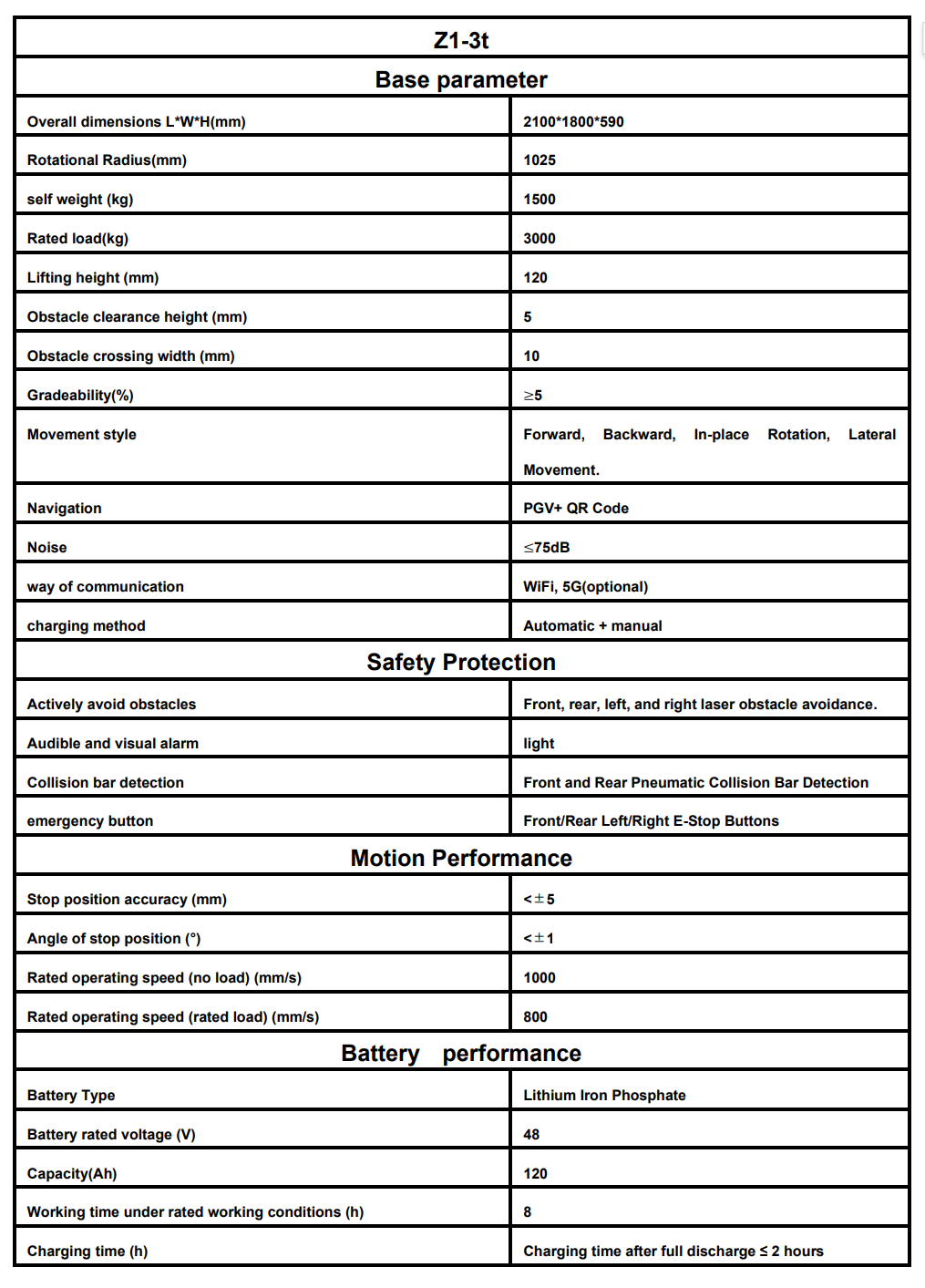

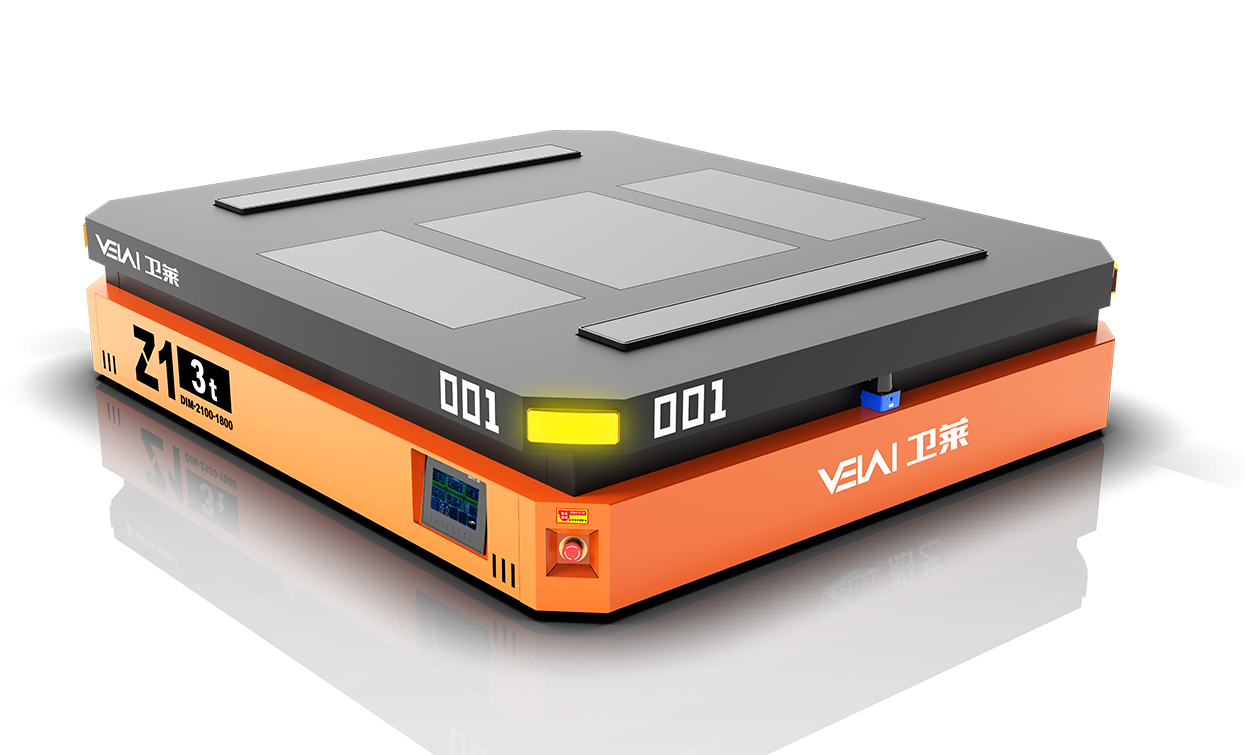

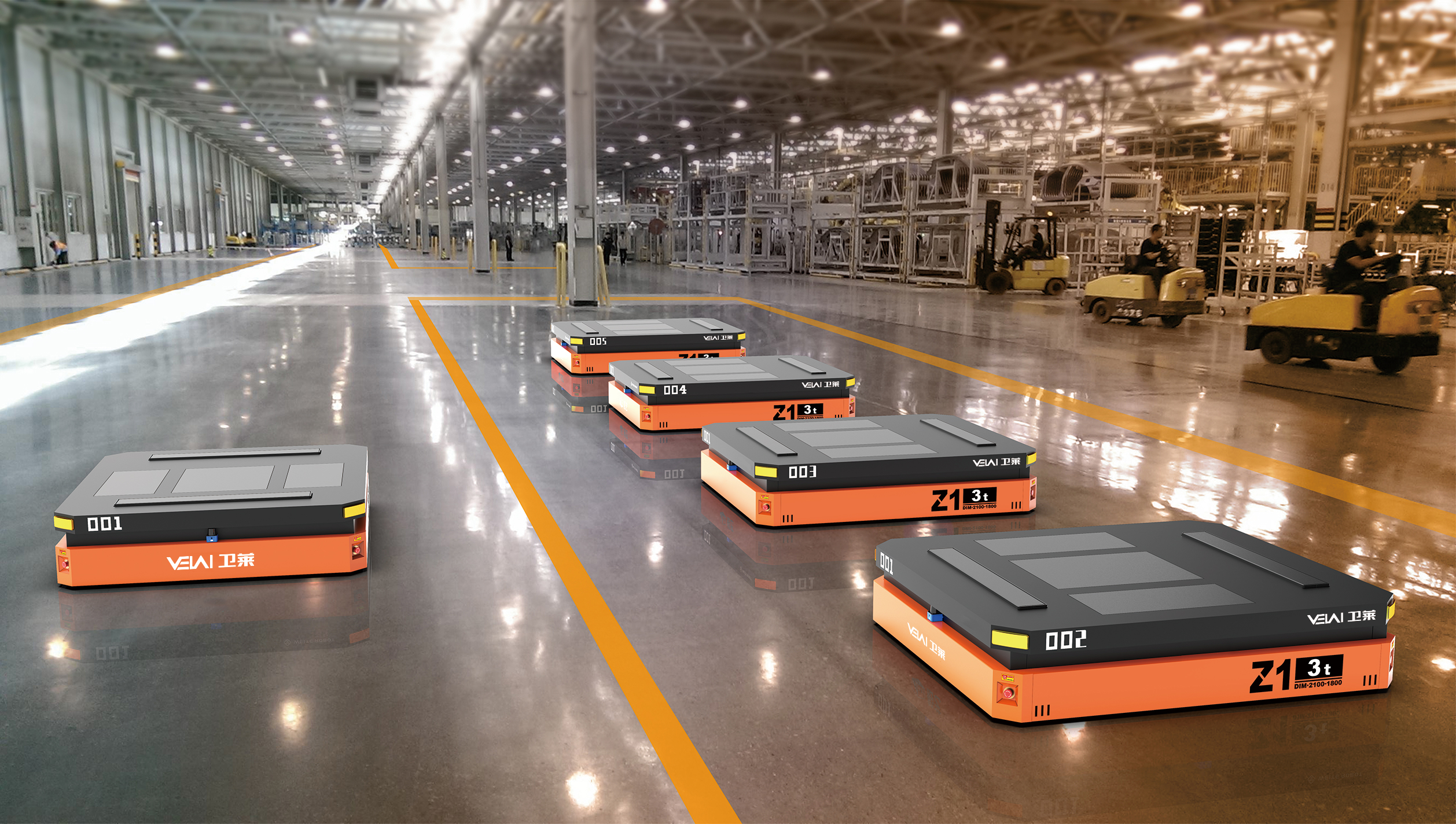

The Z1-3t heavy-duty AGV, with a load capacity of 3 tons per vehicle, boasts the functions of spot turning and lateral shifting, making it especially suitable for the transportation of large-size and heavy-tonnage workpieces. It can operate on asphalt, self-leveling, and concrete surfaces, exhibiting strong adaptability to ground conditions. Due to its integral self-lifting function, it can not only directly carry workpieces but also indirectly support workpieces by drilling into the workpiece racks and lifting them. According to user requirements, multiple AGVs can achieve synchronized movement for lifting oversized components. The AGV can operate automatically using a composite navigation mode of PGV + QR code, and can also be operated remotely.

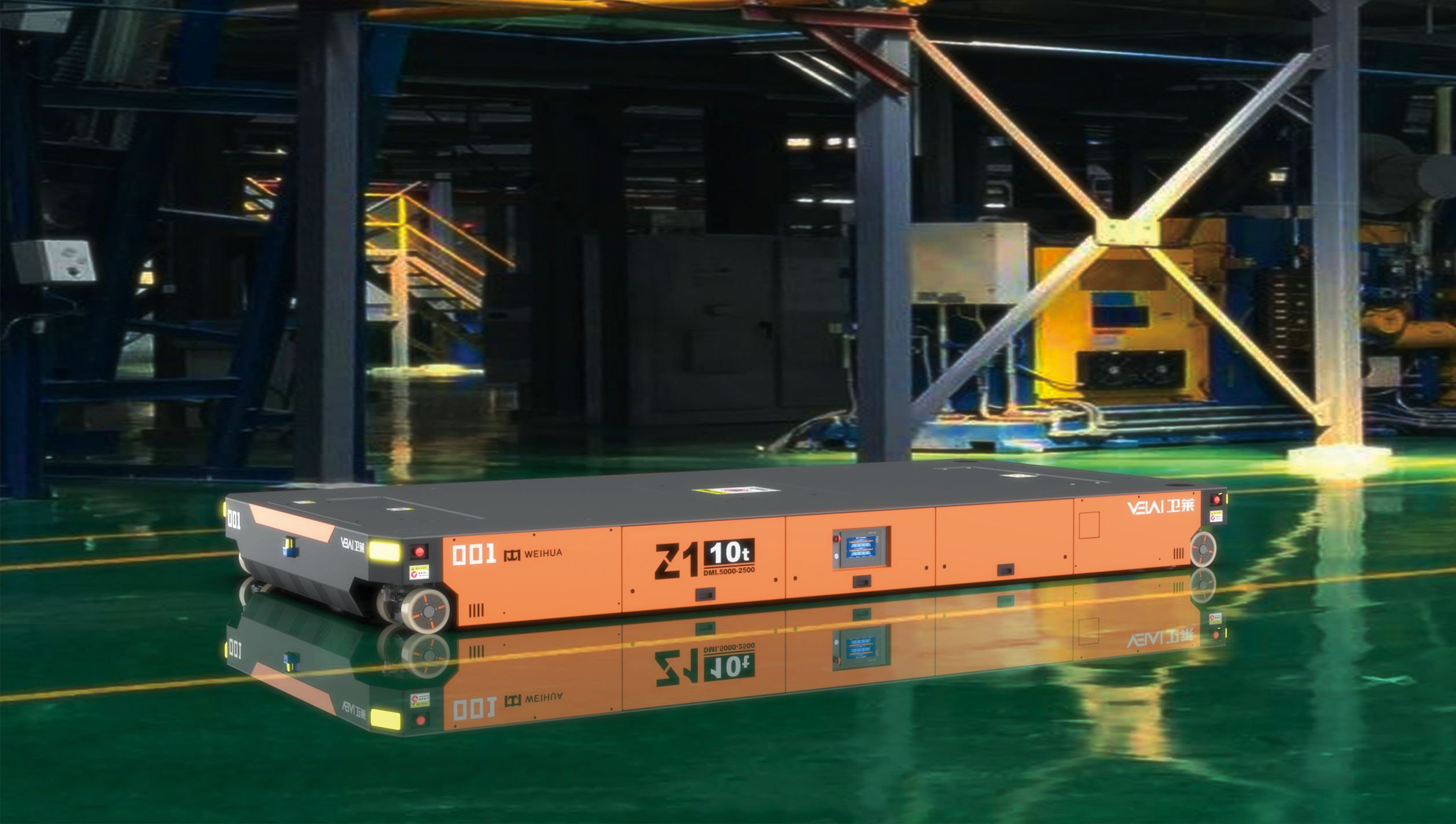

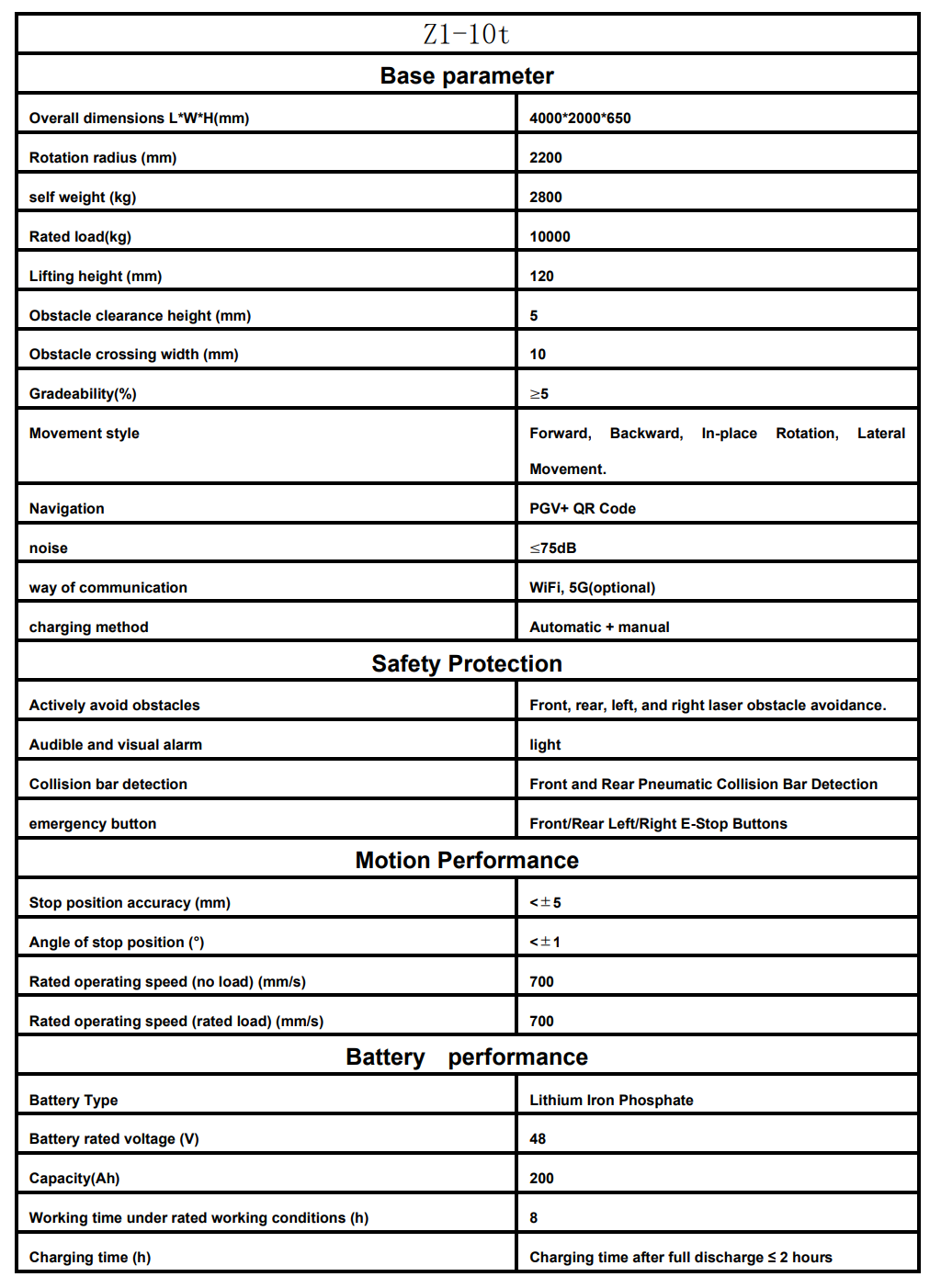

The Z1-10t heavy-duty AGV, offering a load capacity of 10 tons per vehicle, features spot turning and lateral shifting capabilities, making it particularly suitable for the transportation of large-sized and heavy-tonnage workpieces. It can operate on asphalt, self-leveling, and concrete surfaces, demonstrating strong adaptability to various ground conditions. With its integrated self-lifting function, it can not only directly carry workpieces, but also indirectly support workpieces by drilling into the workpiece racks, lifting them, and then suspending the racks. According to user requirements, multiple AGVs can achieve synchronized movement to lift oversized components. The AGV operates fully automatically with a composite navigation system of PGV + QR code, and can also be operated remotely.

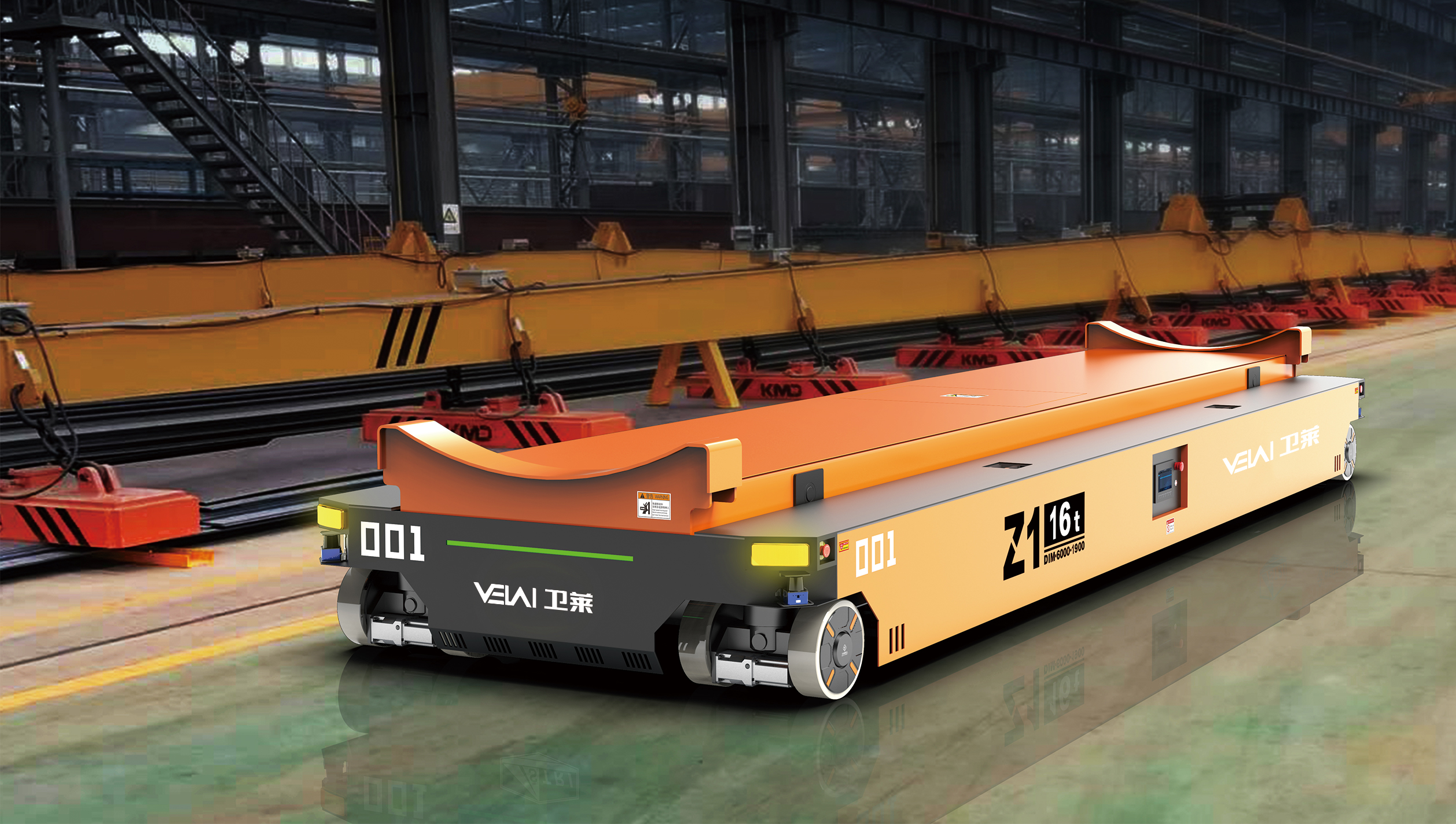

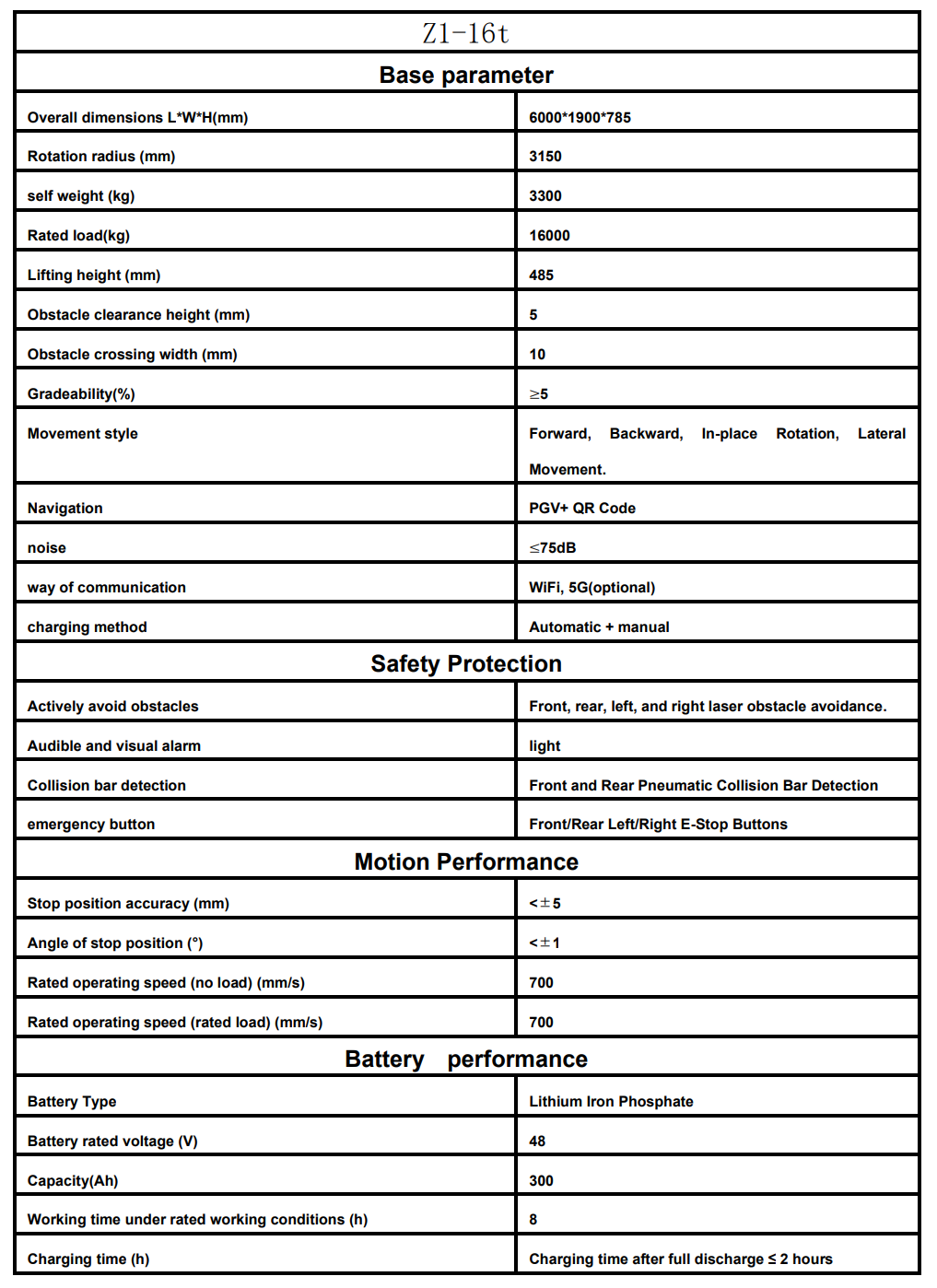

The Z1-16t heavy-duty AGV provides a load capacity of 16 tons per vehicle, equipped with spot turning and lateral shifting capabilities, making it ideally suited for the transportation of large-sized and heavy-tonnage workpieces. It can operate on asphalt, self-leveling, and concrete surfaces, exhibiting strong adaptability to various ground conditions. Thanks to its integrated self-lifting function, it can be used not only for directly carrying workpieces but also for indirectly supporting workpieces by drilling into the workpiece racks, lifting them, and then suspending the racks. According to user requirements, multiple AGVs can achieve synchronized movement to lift oversized components. The AGV operates fully automatically with a composite navigation system of PGV + QR code, and can also be operated remotely.

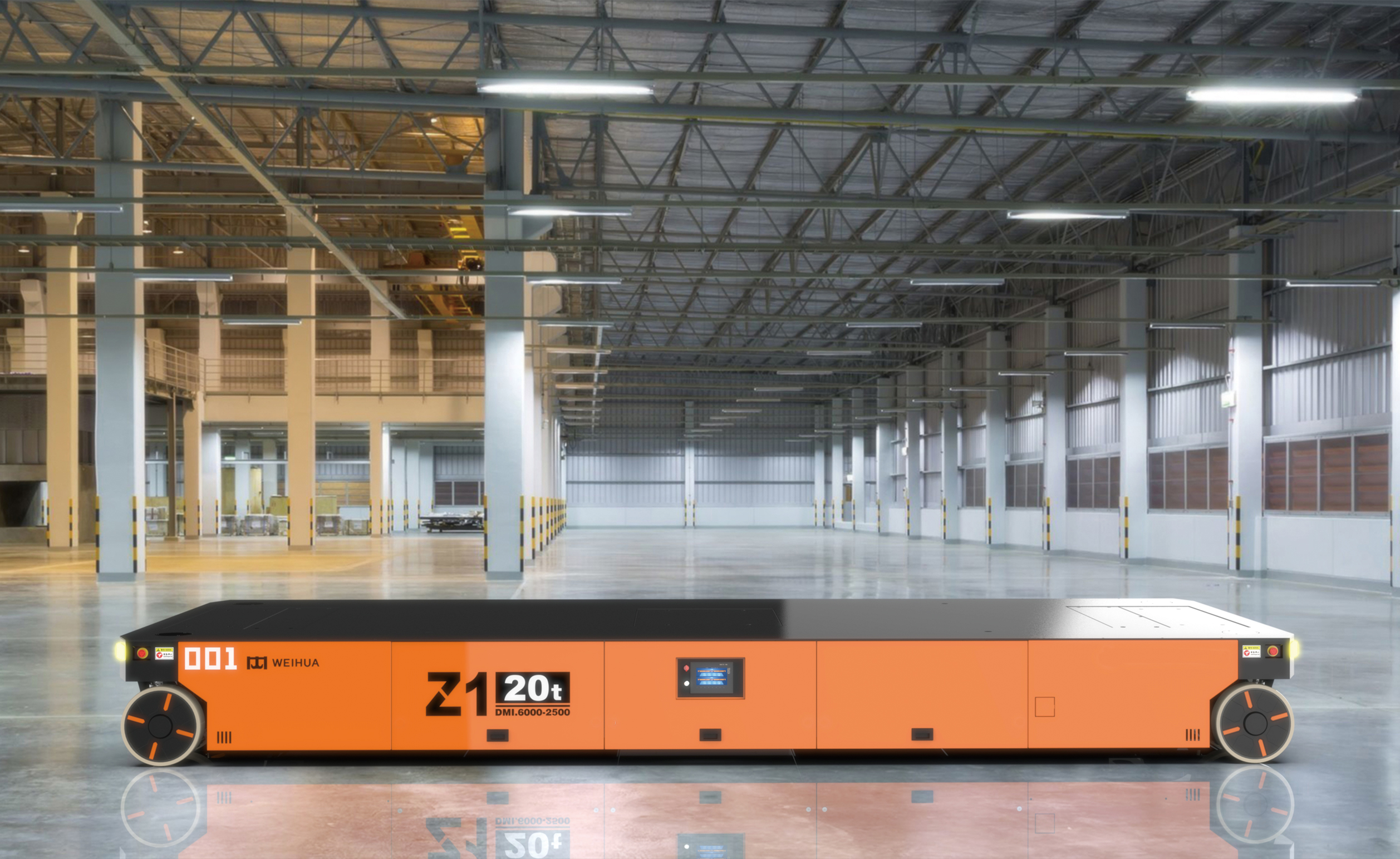

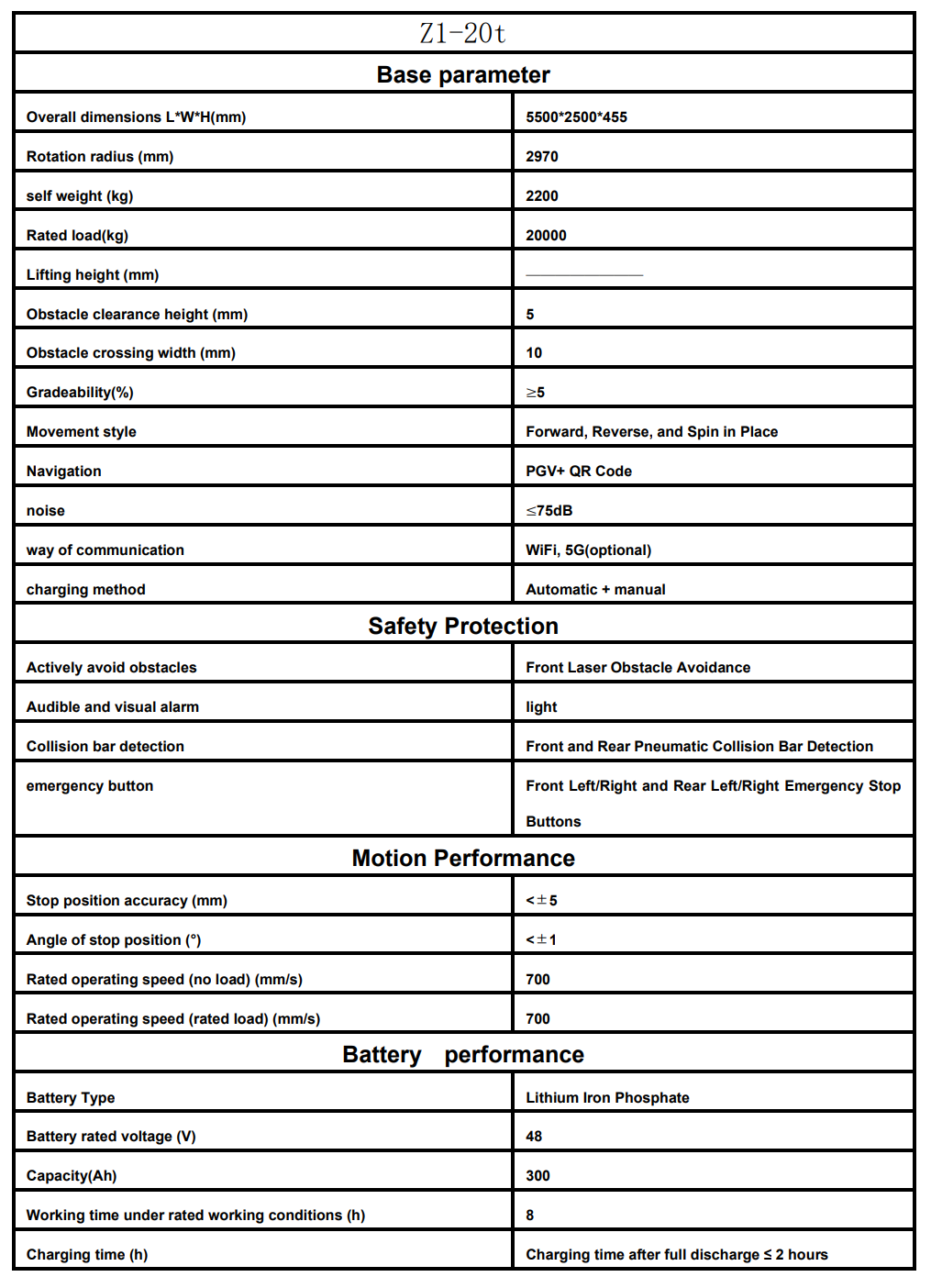

The Z1-20t heavy-duty AGV boasts a load capacity of 20 tons per vehicle, equipped with spot turning and lateral shifting capabilities, making it especially suitable for the transportation of large-sized and heavy-tonnage workpieces. It can operate on asphalt, self-leveling, and concrete surfaces, demonstrating strong adaptability to various ground conditions. Due to its integrated self-lifting function, it can be used not only for directly carrying workpieces but also for indirectly supporting workpieces by drilling into the workpiece racks, lifting them, and then suspending the racks. According to user requirements, multiple AGVs can achieve synchronized movement to lift oversized components. The AGV operates fully automatically with a composite navigation system of PGV + QR code, and it can also be operated remotely.
The Z1-32t heavy-duty AGV offers a load capacity of 32 tons per vehicle, featuring spot turning and lateral shifting capabilities, making it particularly suitable for the transportation of large-sized and heavy-tonnage workpieces. It can operate on asphalt, self-leveling, and concrete surfaces, exhibiting strong adaptability to different ground conditions. Thanks to its integrated self-lifting function, it can be used to not only directly carry workpieces but also indirectly support workpieces by drilling into the workpiece racks, lifting them, and then suspending the racks. Based on user requirements, multiple AGVs can achieve synchronized movement for lifting oversized components. The AGV operates fully automatically with a composite navigation system of PGV + QR code, and it can also be operated remotely.

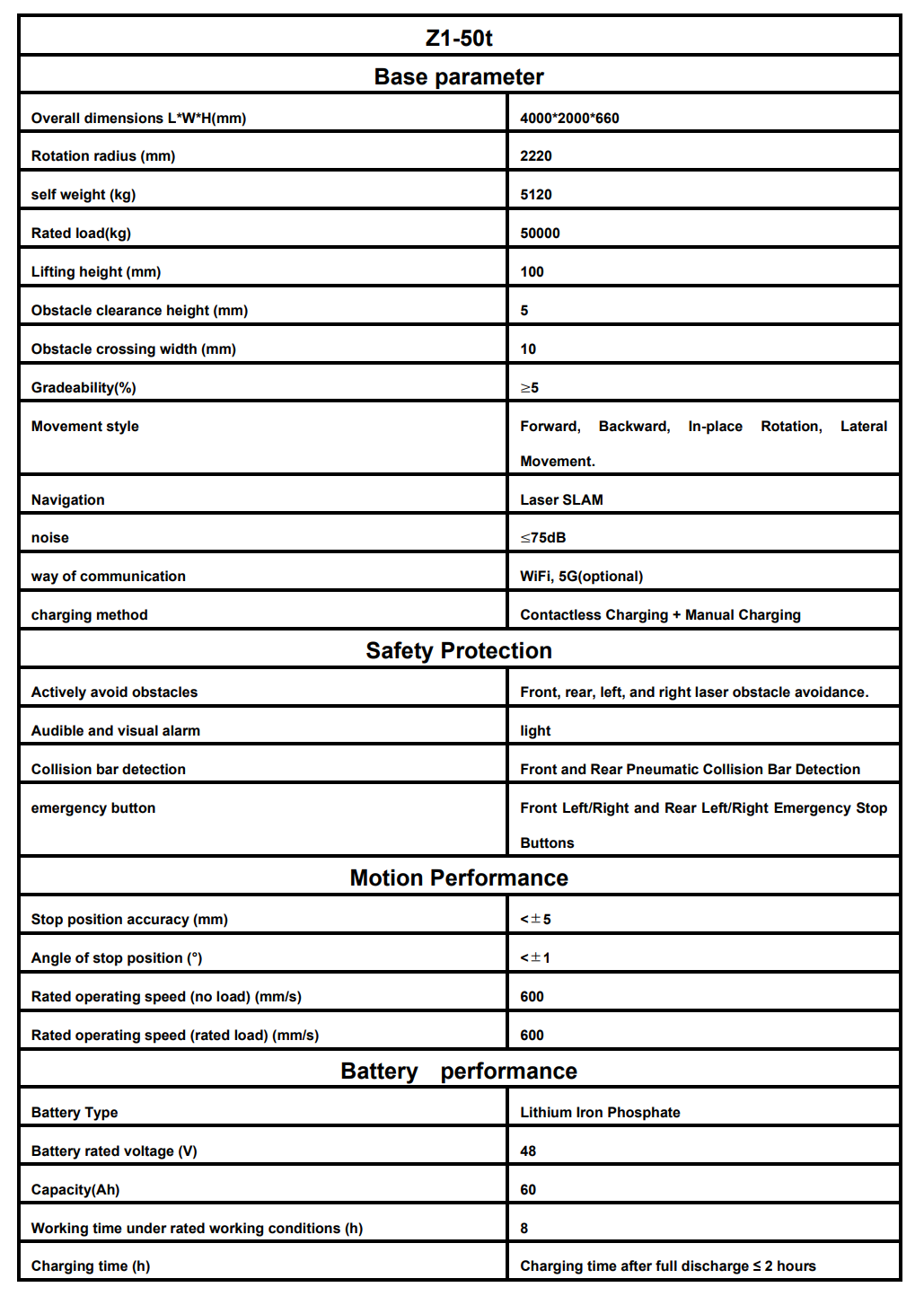

The Z1-50t heavy-duty AGV (Automated Guided Vehicle) offers a single-vehicle load capacity of 50 tons, featuring in-place turning and lateral movement capabilities, making it particularly suitable for transporting large-sized and heavy-weight workpieces. It can operate on asphalt, self-leveling, and concrete floors, demonstrating strong adaptability to various ground conditions. Due to its built-in self-lifting function, it can not only directly carry workpieces but also indirectly support workpiece racks by drilling into the racks and lifting them up, thus indirectly bearing the weight of the workpieces. According to user requirements, multiple AGVs can achieve synchronized movement for lifting oversized components. The AGV utilizes laser SLAM navigation for fully automated operation, and it can also be operated remotely.

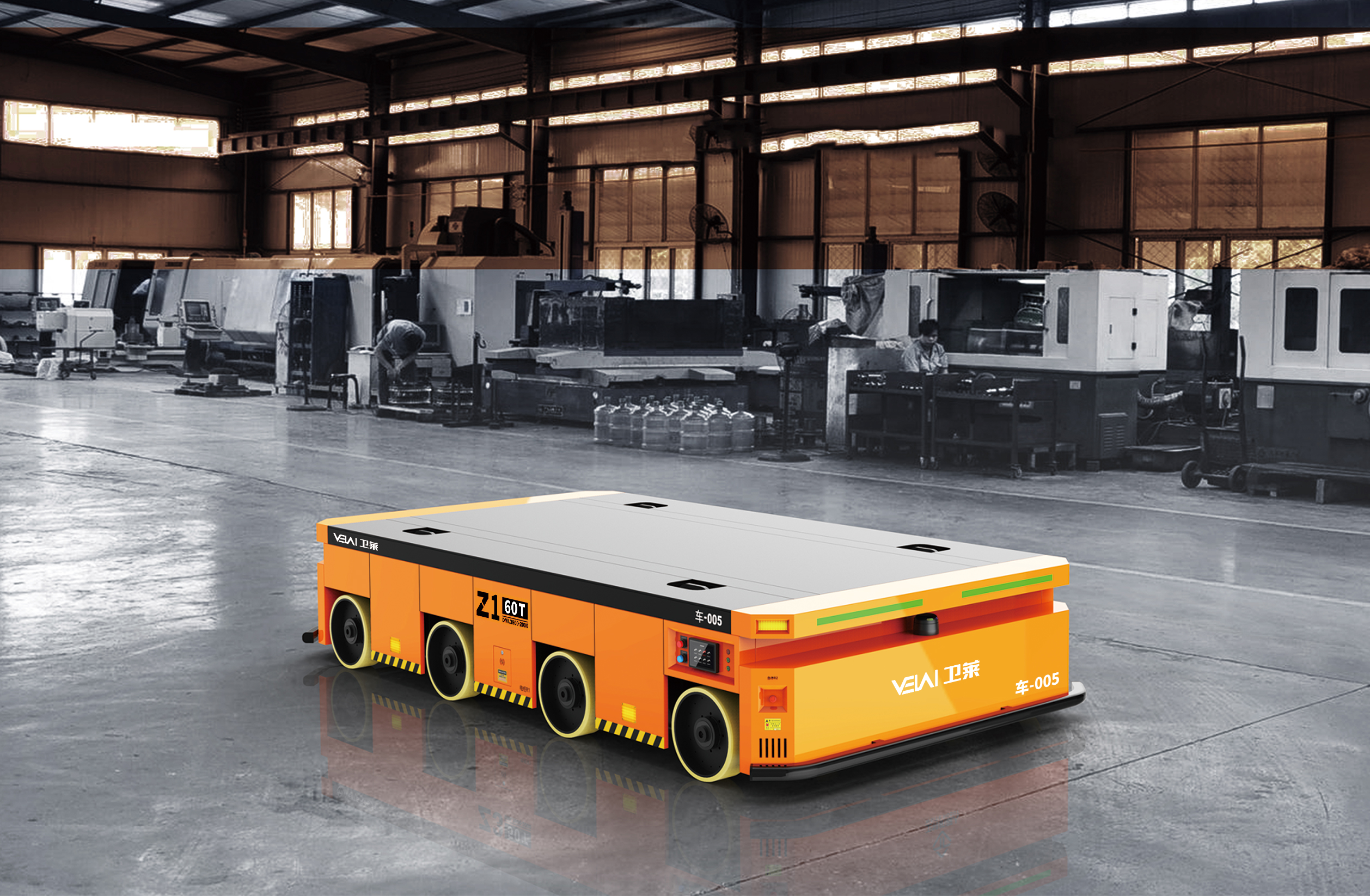

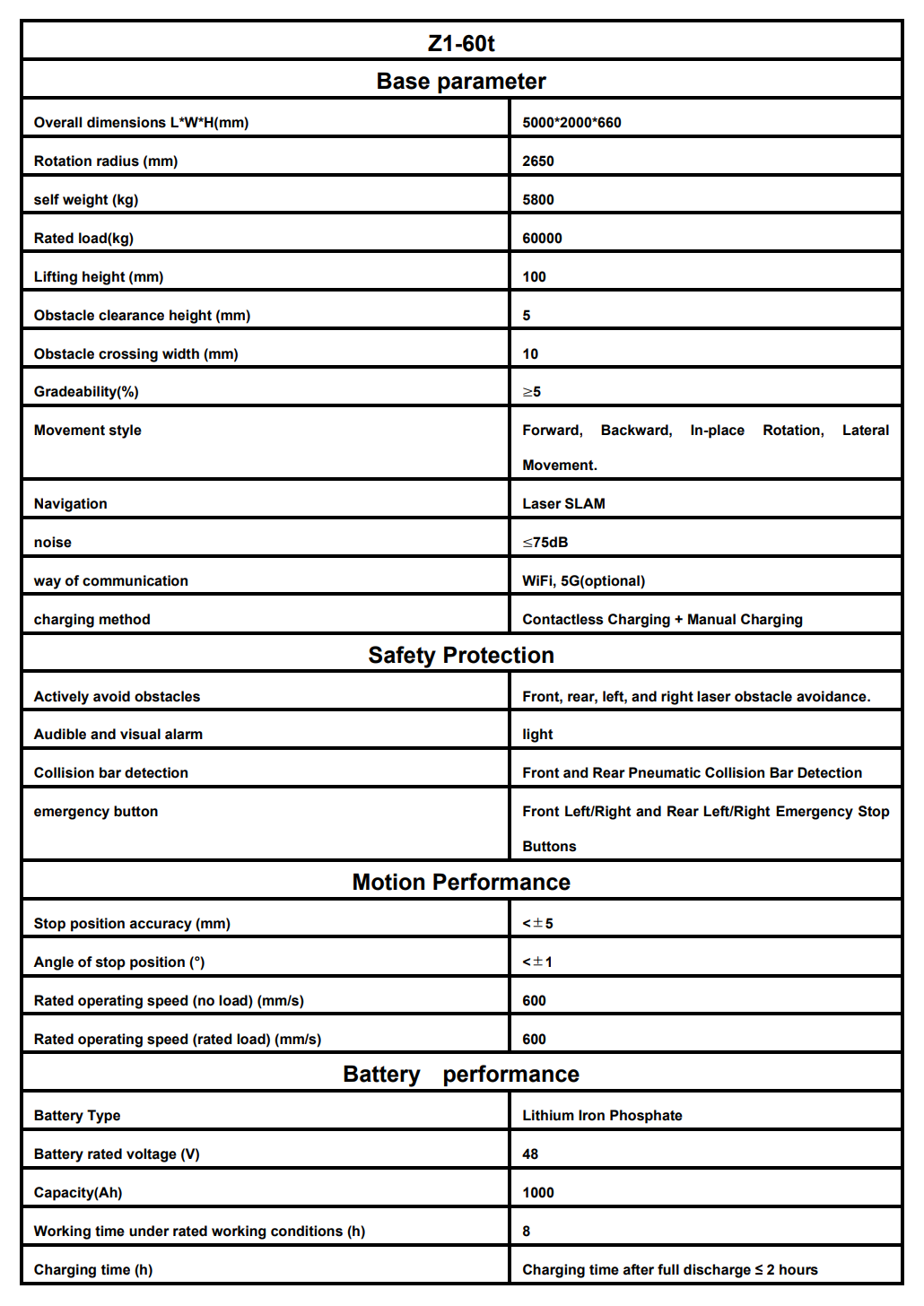

The Z1-60t heavy-duty AGV offers a single-vehicle load capacity of 50 tons, featuring in-place turning and lateral movement capabilities, making it especially suitable for transporting large-sized and heavy-weight workpieces. It can operate on asphalt, self-leveling, and concrete floors, demonstrating strong adaptability to various ground conditions. Due to its built-in self-lifting function, it can not only directly carry workpieces but also indirectly support workpiece racks by drilling into the racks and lifting them up, thus indirectly bearing the weight of the workpieces. According to user requirements, multiple AGVs can achieve synchronized movement for lifting oversized components. The AGV utilizes laser SLAM navigation for fully automated operation, and it can also be operated remotely.

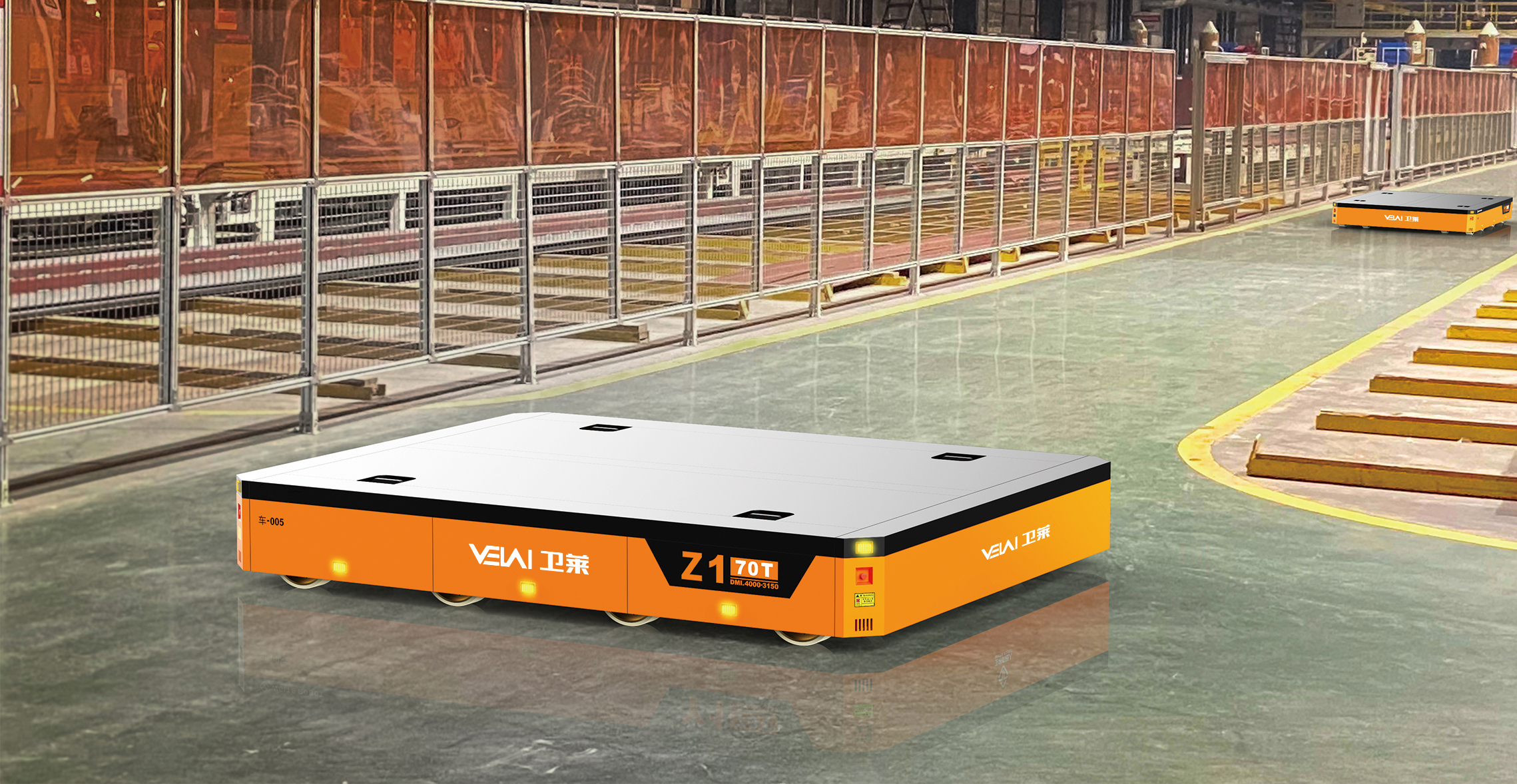

The Z1-70t heavy-duty AGV provides a load capacity of 70 tons per vehicle, featuring in-place turning and lateral movement capabilities, making it particularly suitable for transporting large-sized and heavy-weight workpieces. It can operate on asphalt, self-leveling, and concrete floors, demonstrating strong adaptability to various ground conditions. Due to its built-in self-lifting function, it can not only directly carry workpieces but also indirectly support workpiece racks by drilling into the racks and lifting them up, thus indirectly bearing the weight of the workpieces. According to user requirements, multiple AGVs can achieve synchronized movement for lifting oversized components. It utilizes a composite navigation mode of PGV and QR code for fully automated operation, and it can also be operated remotely.

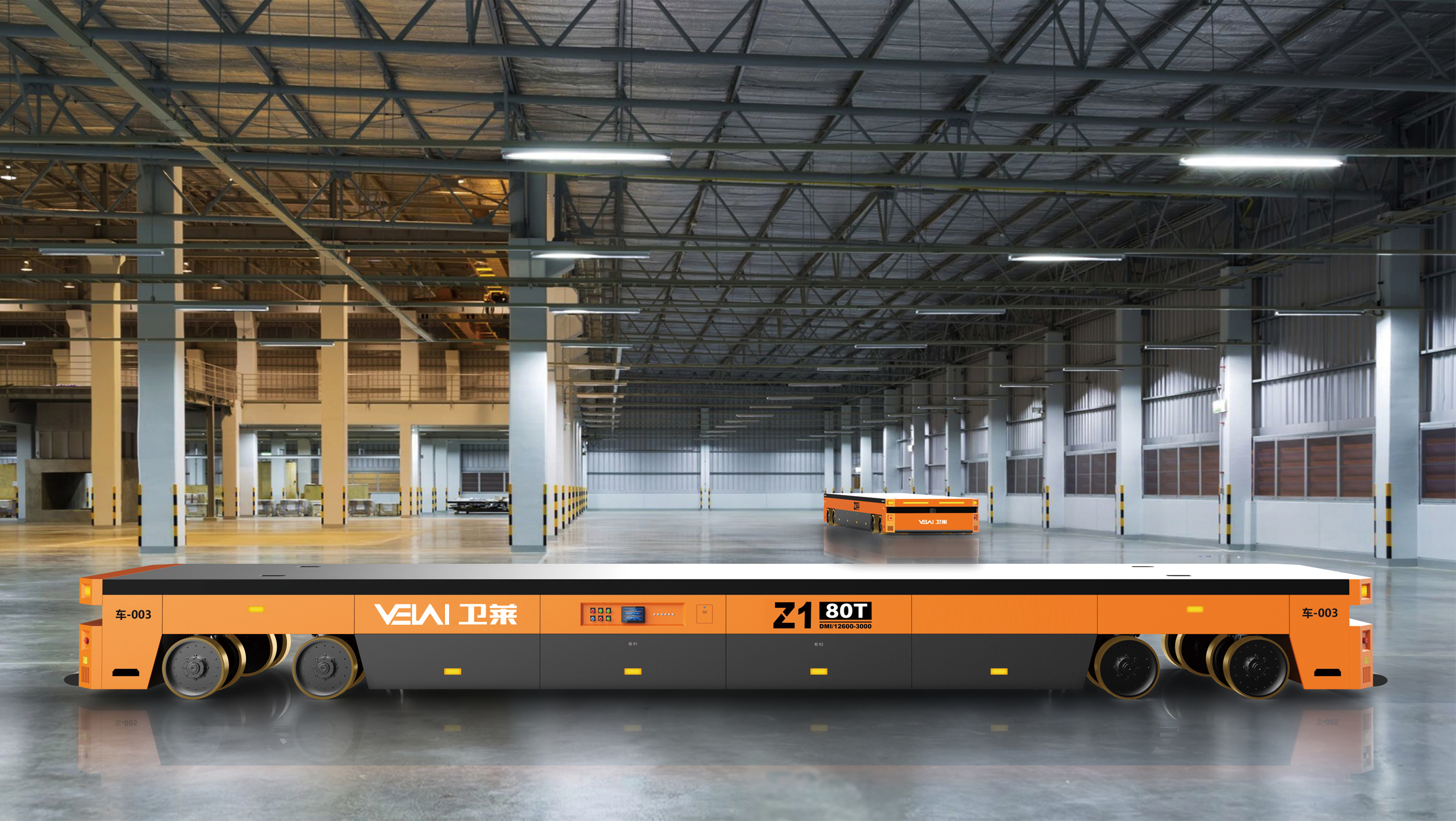

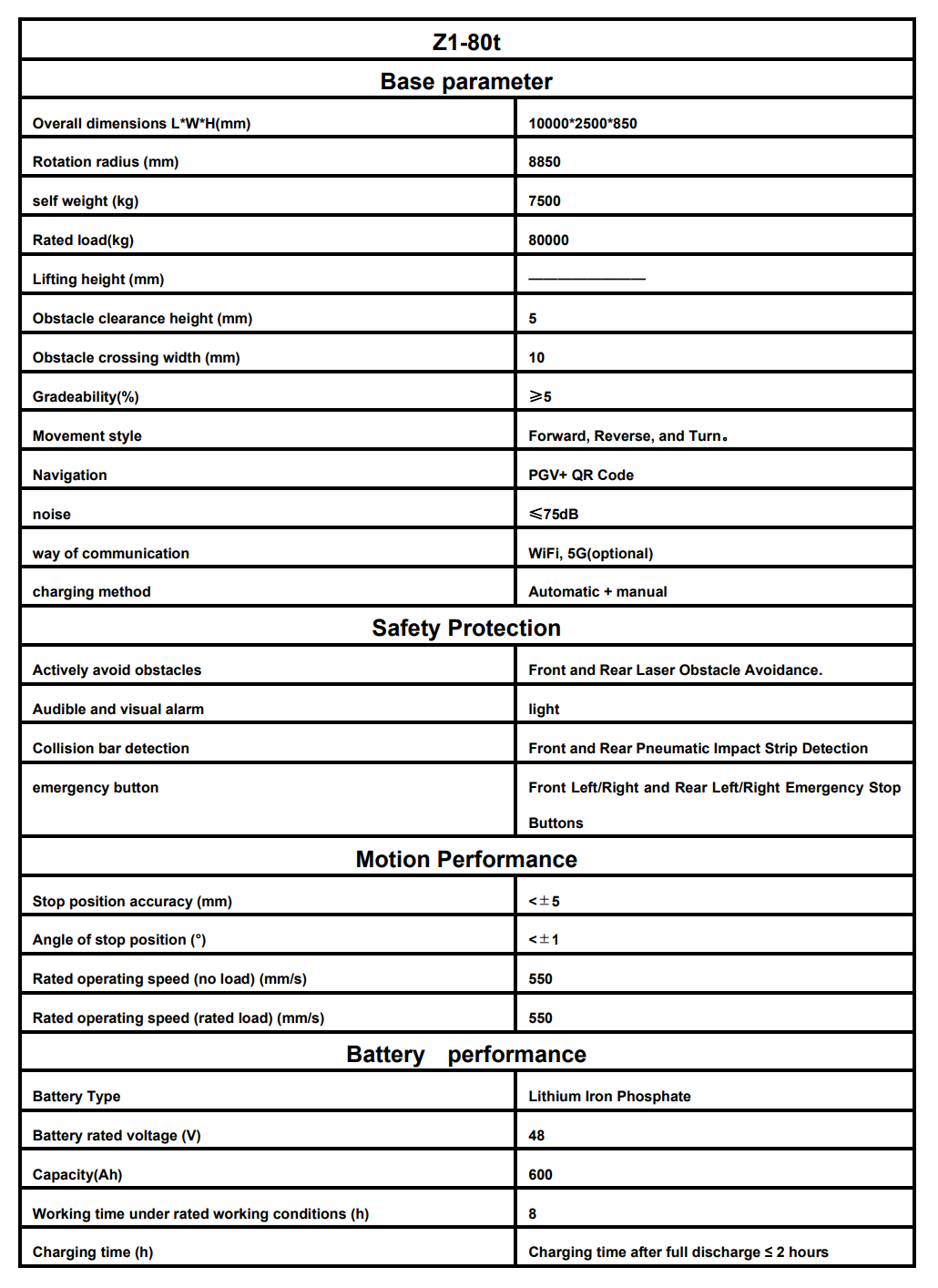

The Z1-80t heavy-duty AGV offers a load capacity of 80 tons per vehicle, featuring in-place turning and lateral movement capabilities, making it particularly suitable for transporting large-sized and heavy-weight workpieces. It can operate on asphalt, self-leveling, and concrete floors, demonstrating strong adaptability to various ground conditions. Due to its built-in self-lifting function, it can not only directly carry workpieces but also indirectly support workpiece racks by drilling into the racks and lifting them up, thus indirectly bearing the weight of the workpieces. According to user requirements, multiple AGVs can achieve synchronized movement for lifting oversized components. It utilizes a composite navigation mode of PGV and QR code for fully automated operation, and it can also be operated remotely.

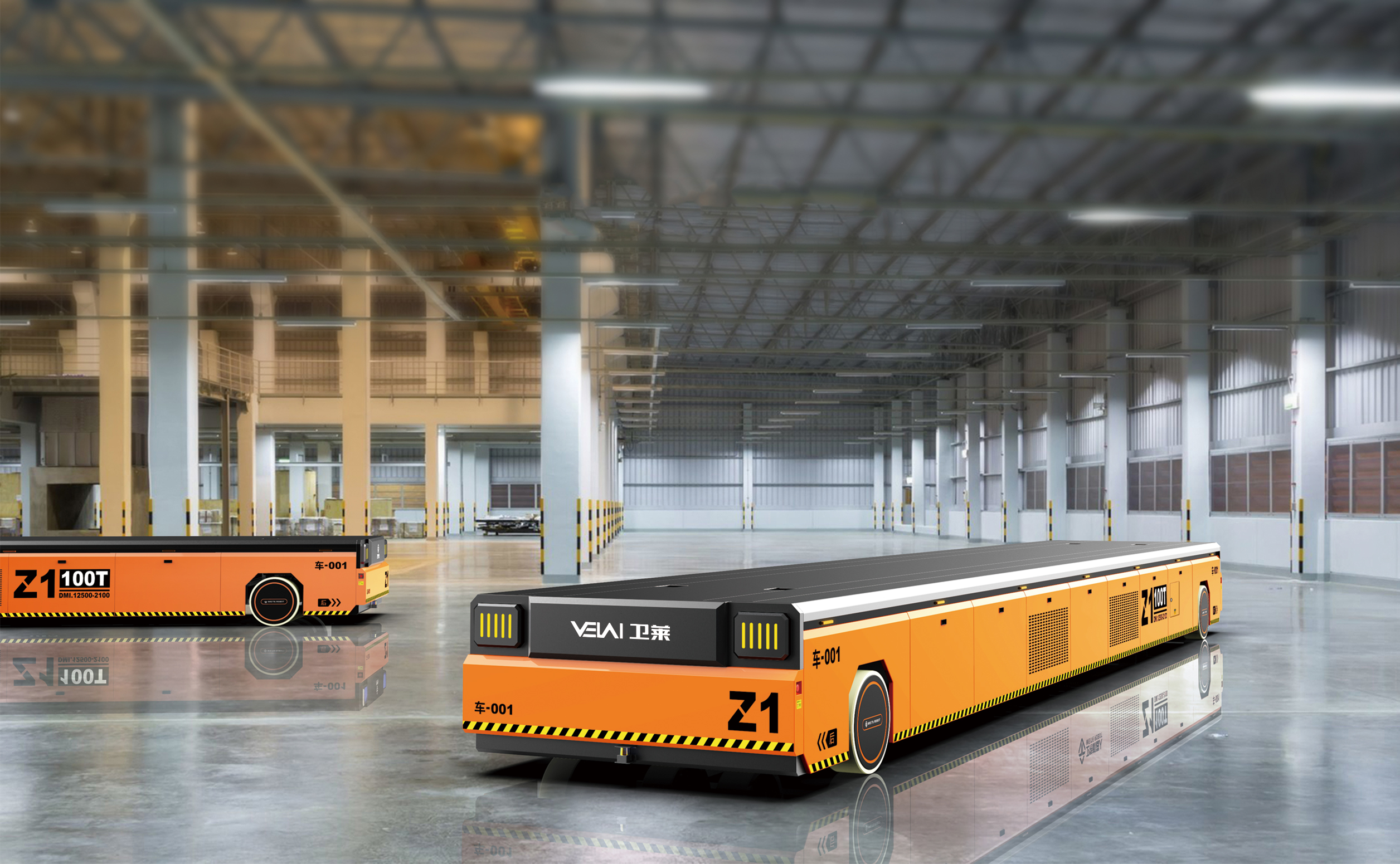

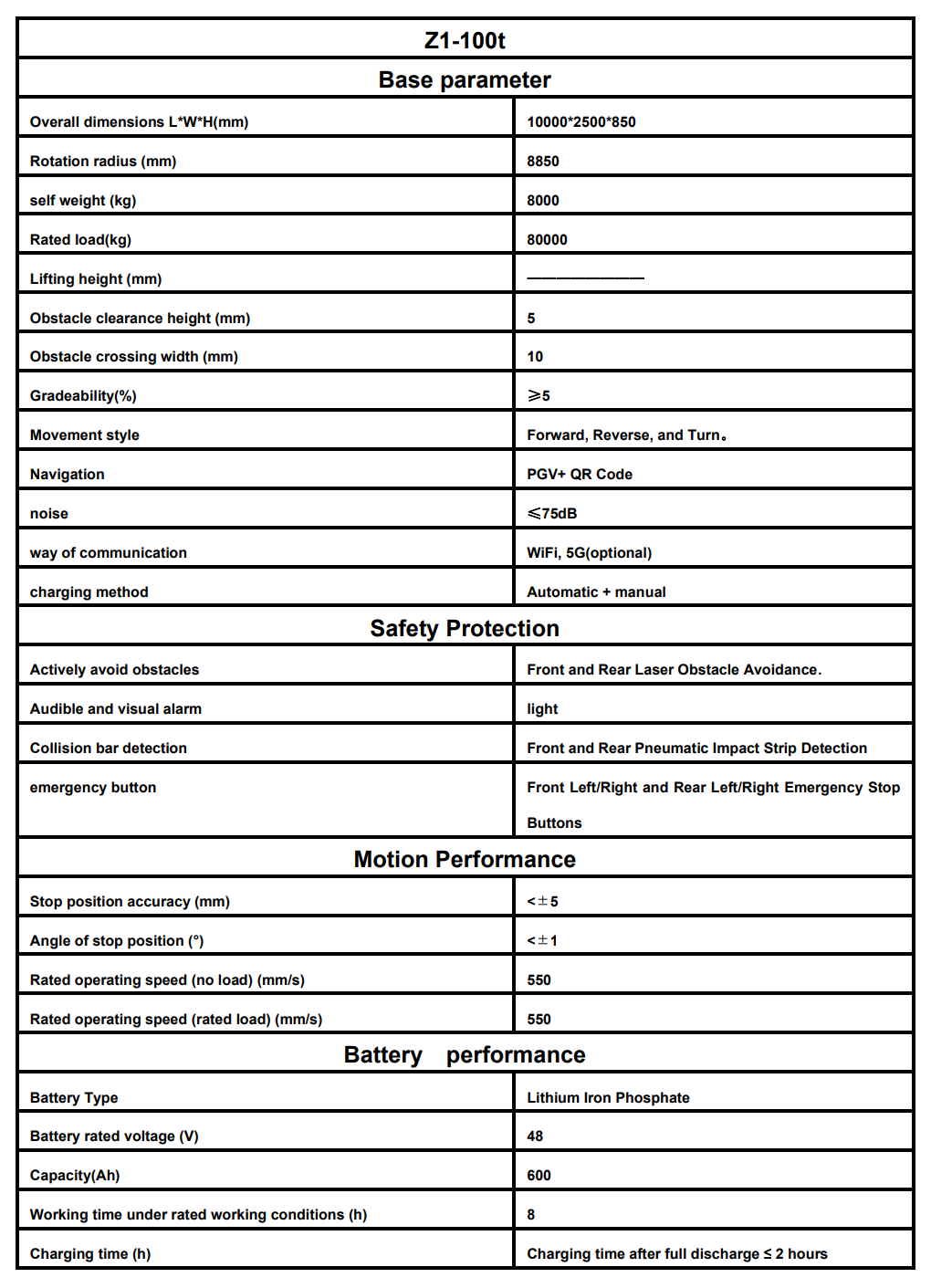

The Z1-100t heavy-duty AGV (Automated Guided Vehicle) offers a load capacity of 100 tons per unit, with the ability to turn on the spot and move laterally. It is particularly suitable for transporting large-sized and heavy-duty workpieces. Operating on asphalt, self-leveling, and concrete ground surfaces, it demonstrates strong adaptability to various ground conditions. Due to its self-lifting function, the AGV can not only be used to directly carry workpieces but also indirectly lift and carry workpiece racks by drilling into them and performing self-lifting. According to user requirements, multiple AGVs can achieve synchronized operation for lifting ultra-large components. It runs fully automatically using a combined navigation mode of PGV (Precision Guided Vehicle) and QR codes, and can also be operated remotely.
