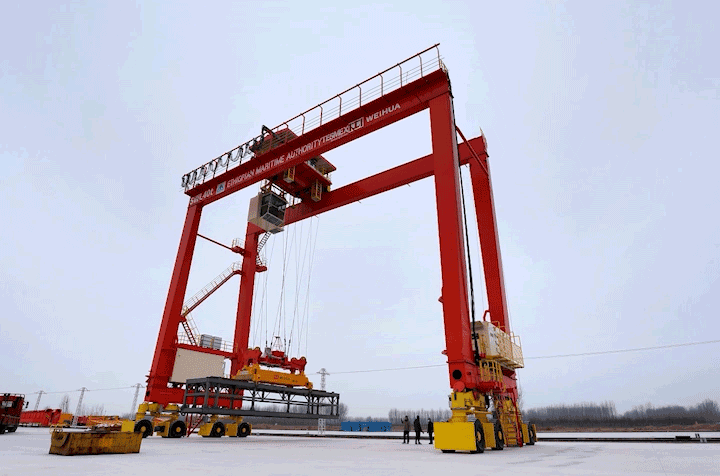

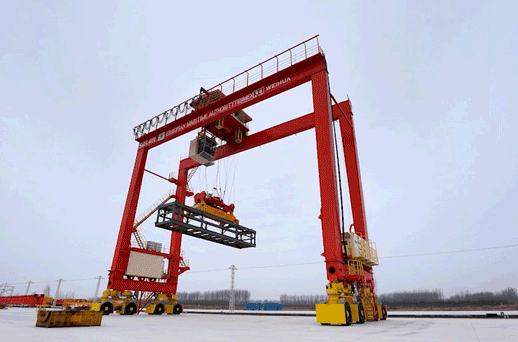

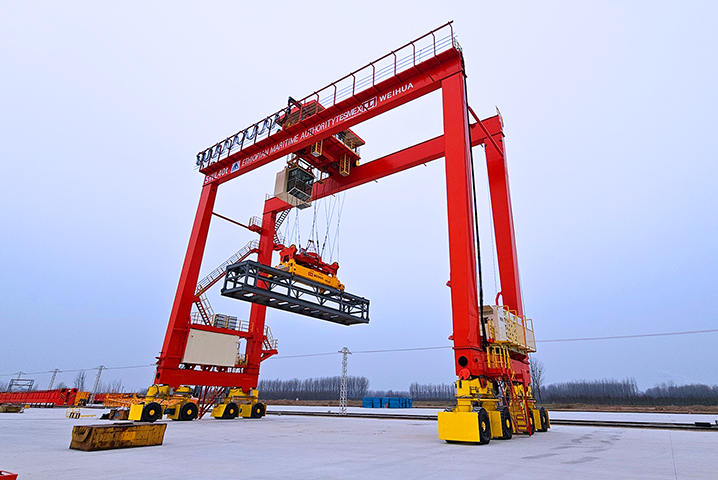

WEIHUA RTG40t-26m A7
lifting capacity：18.2m
hoisting speed：23/52m/min
Trolley travel speed：70m/min
Main Carriage Travel Speed：30/130m/min
Handling and loading/unloading of international standard containers in port,
terminal, and logistics container yards.

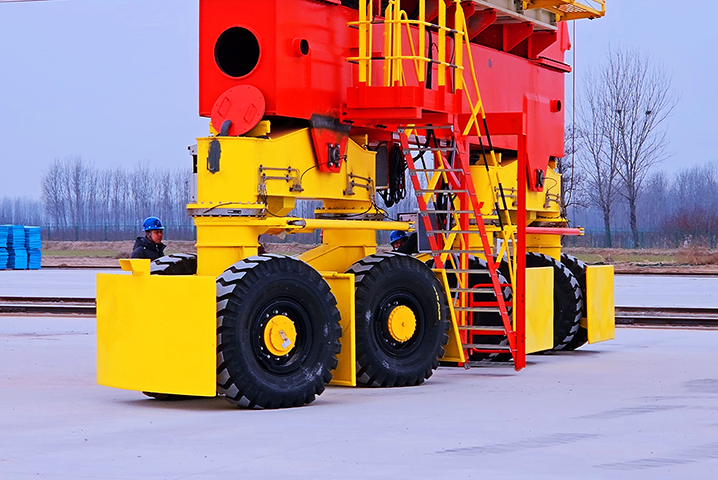

Supported by pneumatic rubber tires，Powered by diesel generators。

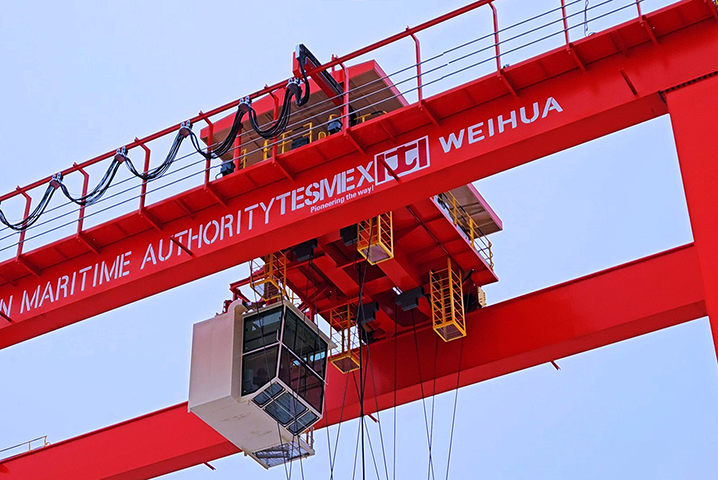

This product is composed of main carriage, trolley assembly,

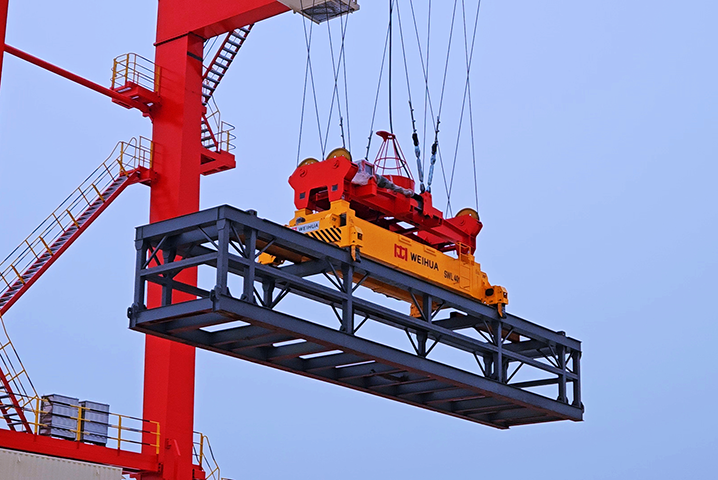

portal frame, power system, and special container lifting device, etc.
The design, manufacturing, and inspection are all carried out in accordance
with the latest standards such as FEM, DIN, IEC, AWS, and GB.
WEIHUA RTG are featured with diverse functions, high efficiency, stability, and reliability.
Operating range is extensive and maneuverability is good.
Tolerance to uneven ground is high.
Convenient usage, maintenance, and servicing。
It is capable of driving straight, traversing, rotating from 0 to 90 degrees, and spinning in place.
It features comprehensive safety indications and overload protection devices.
Maximizes the safety of operators and equipment.
WEIHUA RTG electric drives adopt unique technologies of
full digital AC frequency conversion and PLC control speed regulation.
Flexible control and high precision,
Configured with renowned brand components,
ensuring high-quality overall performance of the machine.
Technical characteristics of WeihuaRTG40t-26m A7 :
1.This product uses a diesel generator set as its power source, enabling flexible relocation and convenient usage.
2.The lifting mechanism employs a bidirectional flexible resistance anti-sway system.
It has anti-sway functions in both trolley and main carriage directions, resulting in significant anti-sway effects.
Improving the anti-sway performance of containers;
3.CMS Intelligent Service Management System, for real-time monitoring of various operating states of the equipment;
4.Vector variable frequency and torque balance control technology, which is energy-saving, environmentally friendly, convenient, and efficient.
5.Automated fault detection and real-time data display technology, ensuring safety and reliability.
6.Unique crane rectification and fine-tuning technology, personalized steering, jacking, and anti-tipping design for large cranes.
7.The equipment is equipped with various safety measures, including gale alarms, safety dynamic scanning, and more,
to ensure safe operation.
